Technical Information
Polyurethane Physical Properties
| Property | Test Method | Transparent | ||||
| Hardness (shore A) | ASTN D-2240 | 53-55 | ||||
| Tensile Strength (Mpa) | BS903 | 2.3 MN/m2 | ||||
| Elongation (%) | BS903 | 165% | ||||
| Tear Strength (KN/m) | BS903 | 13.0 kN/m | ||||
| Abrasion Resistance | BS EN 5470-1:1999 | 0.35g loss | ||||
| Flame Retardancy | UL94HB | Pass | ||||
| Application Temperature | -20ºC to 80ºC | |||||
| Kinetic coefficient of friction | ASTM D-1894-78 |  |
||||
| Shelf Life—12 months when stored in original packaging at room temperature | A. Stainless Steel B. Glass C. Smooth PVC floor Tile D. High impact polystyrene |
2,66 2,78 2,59 2,44 |
||||
Adhesive Data
| 6000 Series Rubber Adhesive The 6000 series adhesive is an aggressive high tack adhesive system, which displays good instant tack, high peel and shear properties. Usually chosen for applications which require high levels of initial tack. Standard adhesive for this range unless otherwise stated |
||||||
| Properties | 6000 Series | 4000 Series | ||||
| Adhesive Characteristics | System Thickness Backing Liner Adhesive Feature |
Solvent Rubber 0.002 120 gsm paper High initial tack |
Solvent Acrylic 0.002 120 gsm paper Good ageing properties |
|||
| Adhesive Performance | Shear Strength @ 21°C Shear Strength @ 49°C |
Excellent Excellent |
Excellent Excellent |
|||
| Application Temperature | 15°C to 65°C | 10°C to 65°C | ||||
| End Use Temperature | -10°C to 80°C | -20°C to 80°C | ||||
| Recommended Storage Temperature |
21°C | 21°C | ||||
Exposure to the Environment
BumperStops are intended for interior applications where physical properties will remain unchanged. When used externally for extended periods, some discolouration as well as loss of adhesion may occur.
Load Tolerance Information
SuperSoft BumperStops are not recommended for load bearing
applications, as they are manufactured from a softer than usual
polyurethane material and are intended for door dampening applications only.
If customers wish to use this product for such applications they should
be aware that much lower values will be achieved. Please refer to the
chart below before use.
Compression tests conducted at ambient temperature (24ºC)
| Product | colour | Profile | Kg per bumper | |||
| PD. 9025C | Transparent | Hemispherical | 1.5 |
|||
| PD.9010C | Transparent | Hemispherical | 2.6 |
|||
| PD.9125C | Transparent | Cylindrical | 6 |
|||
| PD.9931C | Transparent | Special Shape | 1.2 |
Adhesive Considerations

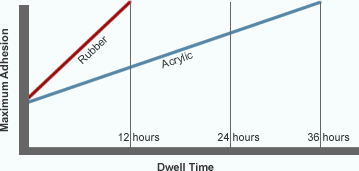

Please refer to the chart which illustrates the relative adhesion properties of the adhesive systems used in BumperStops.
In general terms, allow time (dwell) to increase the surface contact and adhesion. Please note that acrylic based adhesives generally require longer dwell times than rubber based adhesive.
Applying BumperStops
It is important to remember that, as with any self adhesive product, the surface to which you are applying BumperStops must be clean, dry and free from dust and dirt. Therefore, to gain maximum adhesion, clean the surface with low strength solvent and allow to dry thoroughly. Please
follow solvent manufacturers’ instructions for safety. The information provided above have been gained under laboratory conditions, therefore customers must test BumperStops themselves to ensure suitability for intended applications.
All BumperStops are RoHS and Wee compliant.
